Published configuration highlights
- Model and functionWKS-2 / Digital Display Module for Temperature and Pressure
- Key point 1LCD / LED
- Key point 215 units
- Key point 3RS-485 option
WKS-2
Digital Display Module for Temperature and Pressure

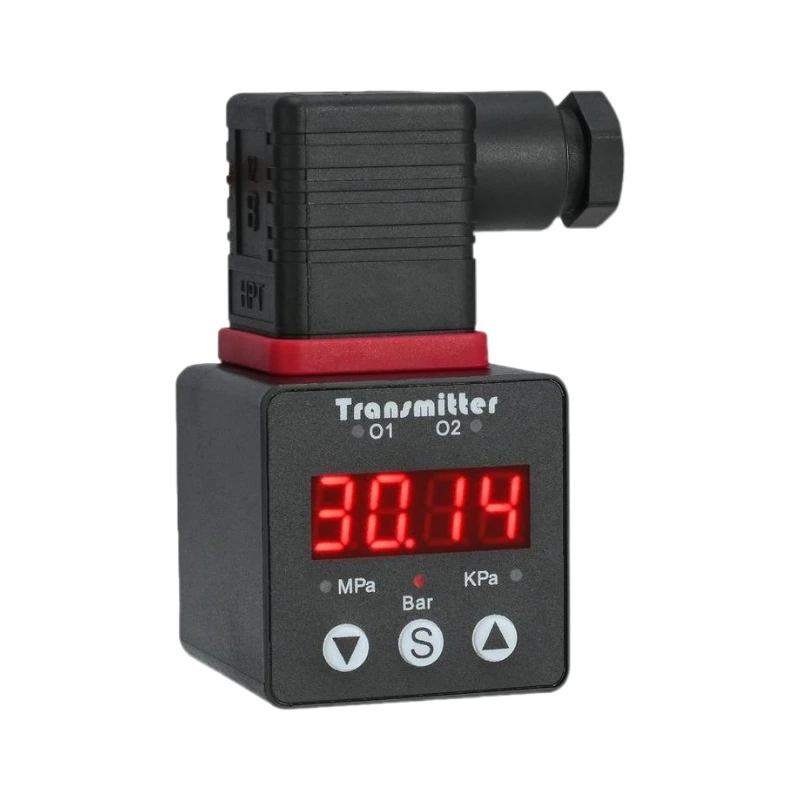

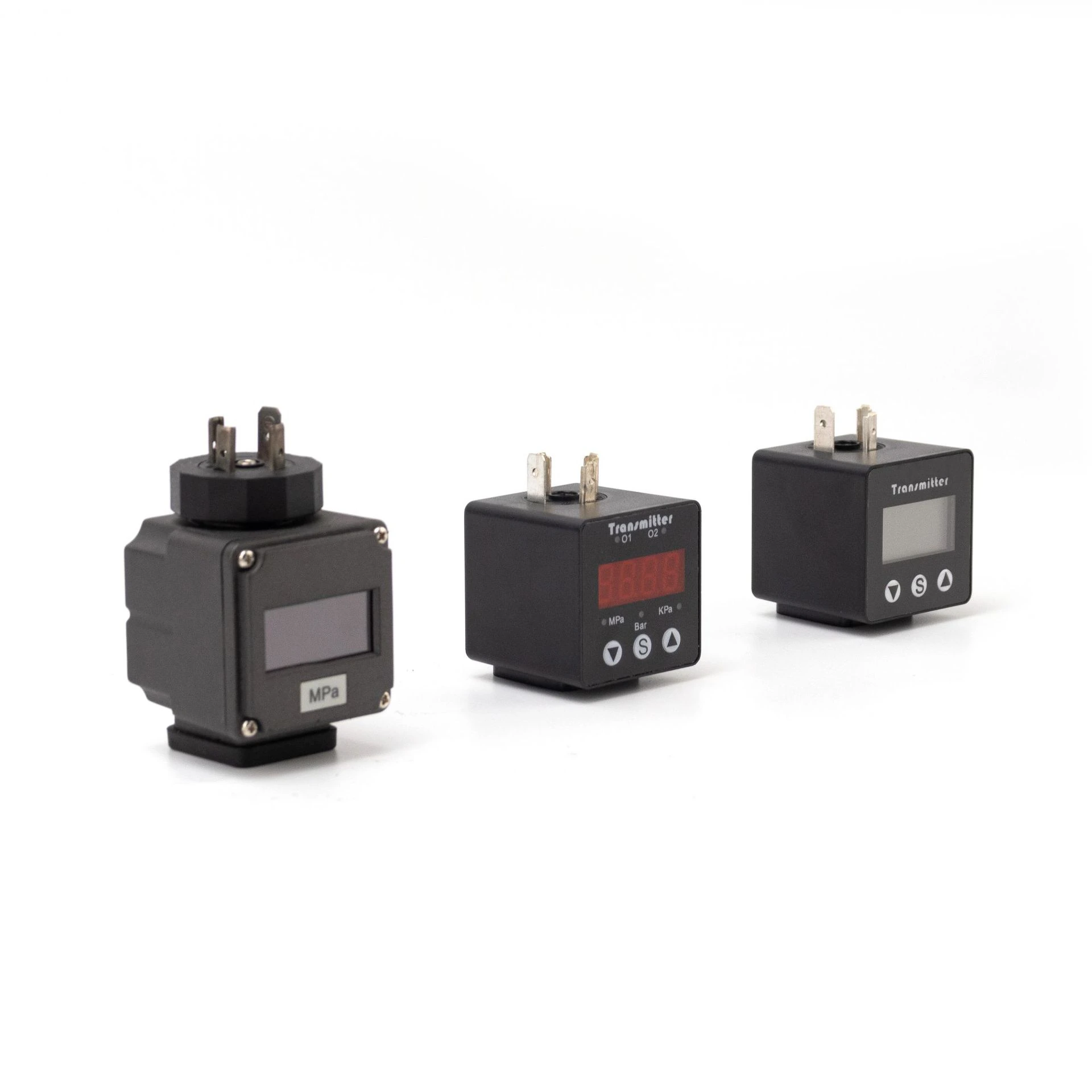

A plug-in LCD or LED indicator for local pressure, level, or temperature display, with 15 selectable engineering units. Versions support 4-20 mA, 0-10 V, mV/RS-485, and an optional NPN switch output.
Configuration note
Confirm the measuring range, medium, wetted materials, process connection, output, and power supply before ordering.
Technical selection overview
Use the published values below as a starting point, then confirm the complete measuring point before ordering. Final range, materials, connection, output, supply, and environmental limits depend on the selected configuration.
Integration and commissioning
Match the input signal, display range, engineering unit, alarm logic, communication settings, and panel or connector interface to the associated field instrument and control system.
Verify input type, displayed units, scaling, alarm setpoints, retransmission, communication address, and the complete loop at representative test values.
Electrical compatibility
Confirm input signal, supply, load, terminal or connector standard, isolation, and compatibility with the field transmitter and controller.
Display and controls
Define engineering units, display range, resolution, local setup access, alarm outputs, and operator visibility.
Panel and field installation
Review dimensions, mounting, cable entry, ingress protection, ambient range, grounding, and communication wiring.
APPLICATION FIT
Where this product family is commonly evaluated
- Local sensor indication
- Control and alarm panels
- Multichannel temperature monitoring
- Field connectors and signal interfaces
Suitability is configuration-dependent. Review media compatibility, operating limits, installation conditions, required approvals, and the receiving control system before final selection.
