Published configuration highlights
- Model and functionWKS-7 / Industrial Temperature and Humidity Transmitter
- Key point 1Temperature + RH
- Key point 20-10 V
- Key point 3RS-485

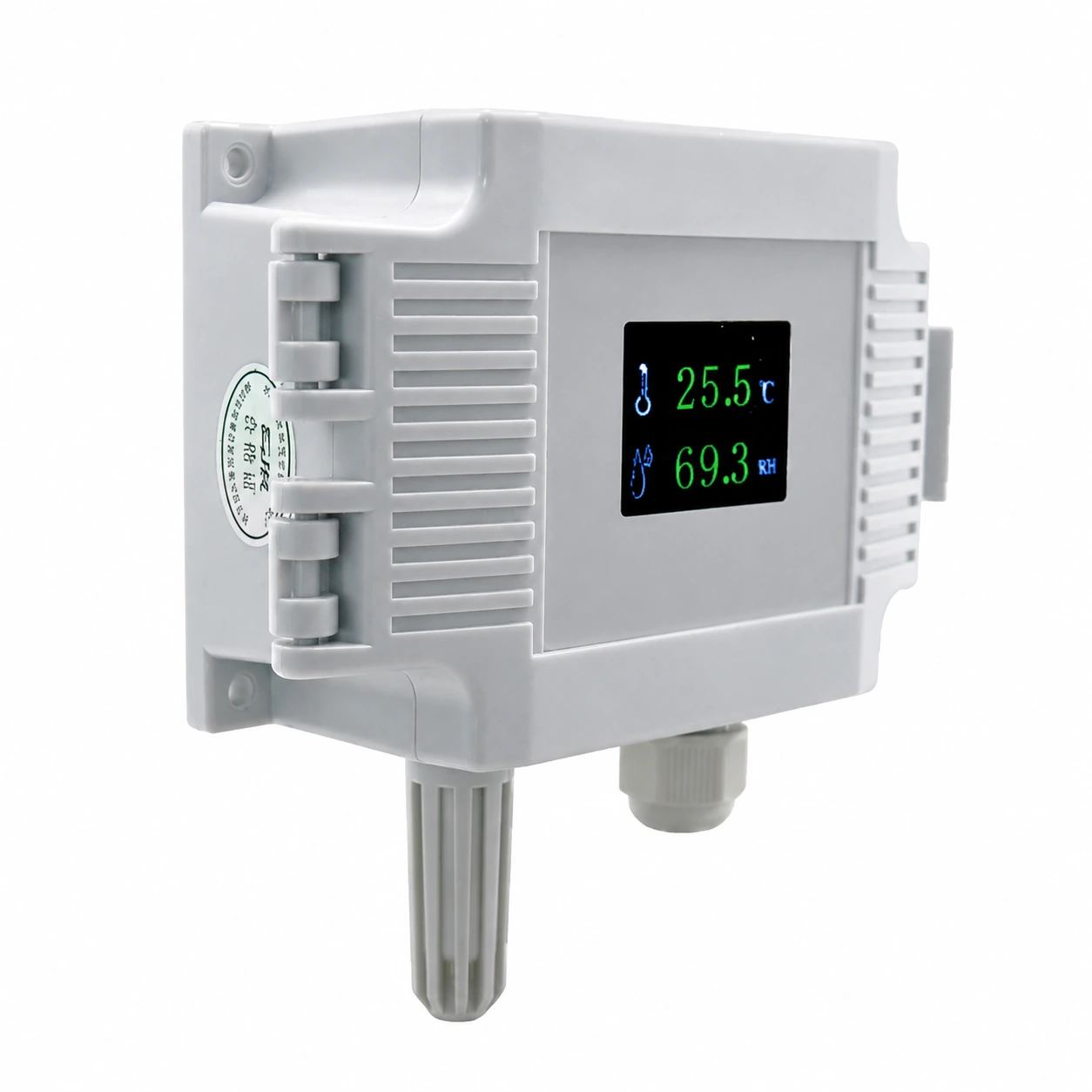

WKS-7
Industrial Temperature and Humidity Transmitter
A wall-mounted temperature and relative-humidity transmitter for production areas, stations, museums, libraries, and other controlled spaces. Output options include 4-20 mA, 0-10 V, and RS-485 for connection to building or environmental monitoring systems.
Configuration note
Confirm the measuring range, medium, wetted materials, process connection, output, and power supply before ordering.
Technical selection overview
Use the published values below as a starting point, then confirm the complete measuring point before ordering. Final range, materials, connection, output, supply, and environmental limits depend on the selected configuration.
Integration and commissioning
Position the sensor where representative air can circulate around the sensing element, away from direct heat, condensation, and local drafts. Confirm the temperature and humidity ranges, mounting method, output, and power supply.
Allow the sensor to stabilize, compare it with a suitable reference at the installed location, and verify engineering units, scaling, update interval, and alarm thresholds.
Measurement envelope
Confirm temperature and relative-humidity ranges, expected condensation, accuracy requirement, and the normal operating band.
Sensor placement
Avoid direct sunlight, heat sources, supply-air jets, stagnant corners, doors, and surfaces that do not represent the monitored space.
Building integration
Match analog or digital output, power supply, update interval, alarm logic, enclosure rating, and network architecture.
APPLICATION FIT
Where this product family is commonly evaluated
- Warehouses and workshops
- Greenhouses and agricultural spaces
- Building automation
- Machine rooms and controlled environments
Suitability is configuration-dependent. Review media compatibility, operating limits, installation conditions, required approvals, and the receiving control system before final selection.
